1. Caliber system (Mobile photometric calibration system)
The Caliber system provides photometric calibration solution for Airfield Ground lights (AGL), both Inset lights and elevated lights that not higher than 1.4 meters, to be compliant with ICAO/ EASA/ FAA standard. It’s installed with ground vehicles to use on Taxiway and Runway. There are 2 versions as the following

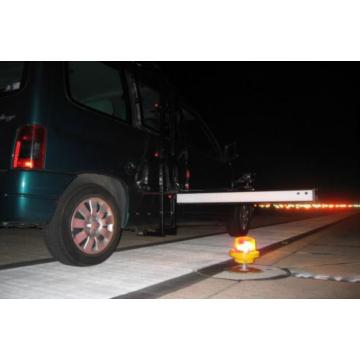

1. Vehicle mount version

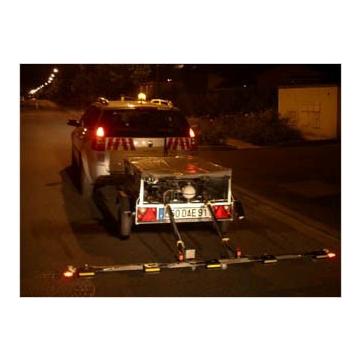

2. Trailer version

vehicle mount version

trailer version



This photometric calibration system can be used with both Inset lights and Elevated lights in Taxiway and Runway


This device can measure by both vertical/horizontal scanning and forward/backward scanning. It provides thehigh resolution analysis for AGL maintenance planning, and real detection of lights color with highest performance.

• High resolution Isocandela diagrams

• Easy, fast and accurate

• Certified by CAA

2. Beamsnap system (Workshop system)

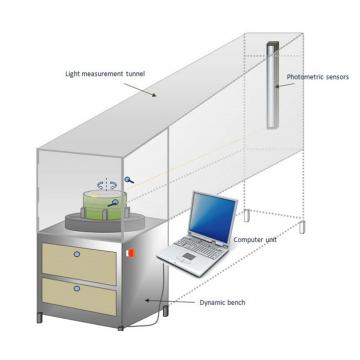

This system is a lab/workshop equipment to calibrate and test photometric compliance of airfield ground lights after refurbishment, required for maintenance. The system uses light sensor technology to give the high resolution analysis for AGL testing to be compliant with ICAO/FAA standard. It can be installed either inside a dark room or inside a dark tunnel of 400x10x80 cm³ (long x height x width).

• High resolution Isocandela diagrams

• All airfield lights

• Modules compatible with Caliber system

• Automatic Rotation of Bi-directional lights

• Easy, fast and accurate

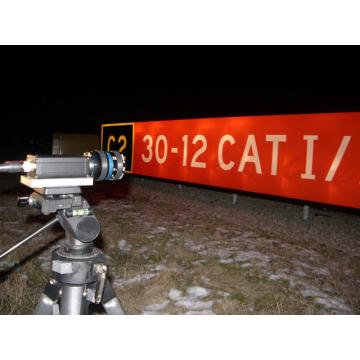

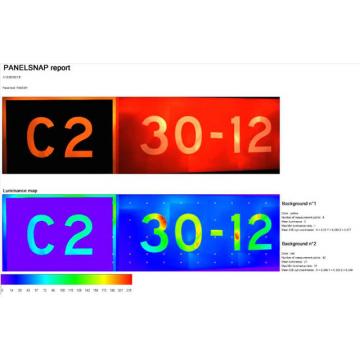

3. Panelsnap system (Airfield Signs Tester)

The portable photometric calibration system for airfield illuminated guidance signs installed on runways and taxiways, to be compliant with ICAO/FAA standard.

• All airfield signs

1. Guidance signs

2. Mandatory signs

3. Information signs

4. Distance Marker signs

• Self diagnostics

• Compatibility with Caliber system

• Portable or fixed used

• Fast. Easy and accurate

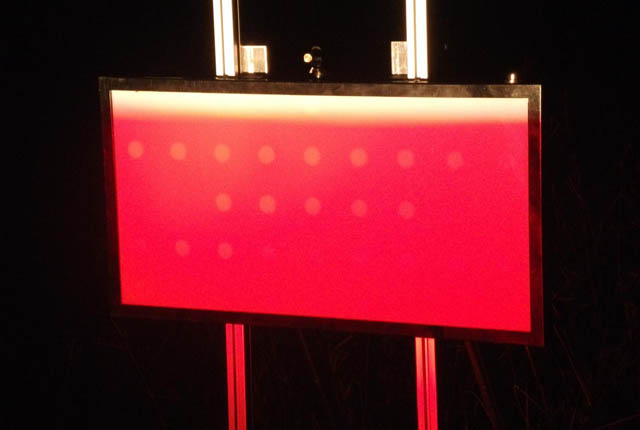

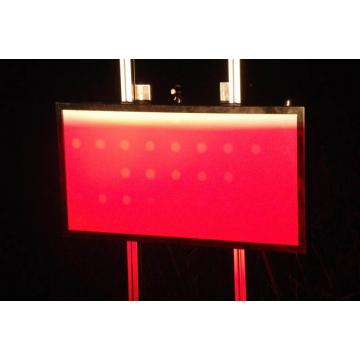

4. Frame reader system

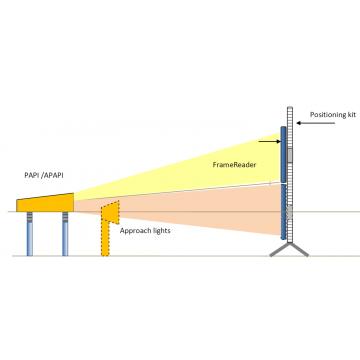

This system provides portable AGL photometric calibration for elevated airfield lights such as elevated approach lights on high masts and PAPIs installed on runways, to be compliant with ICAO/FAA standard.

• Advance capabilities, can measure LED lights

• Self-diagnostic

• Compatibility with Caliber system

• Fast. Easy and accurate

5. Capron system

This system provides photometric calibration for lightings in apron area. It gives high resolution iso-lux diagrams and includes flood lights database.

• All Apron lights

• Compatibility with Caliber system

• Fast. Easy and accurate

6.  Special vehicle
This special vehicle is designed to be the completed equipped vehicles for efficient maintenance. It can be modifimodified withehicle model and any size.

• Completed testing tools and airfield maintenance

• Modular arrangements for secured storage and transportation of spare parts and modules
